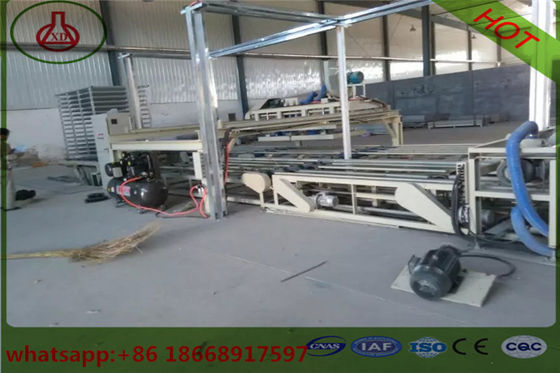

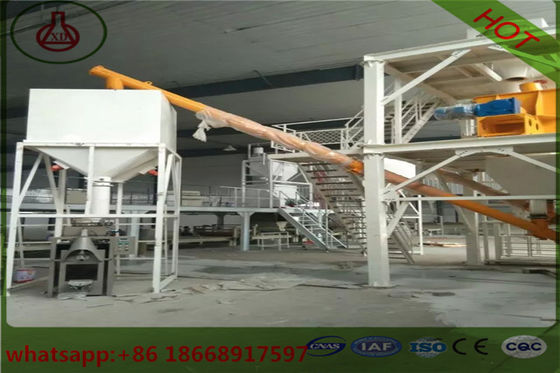

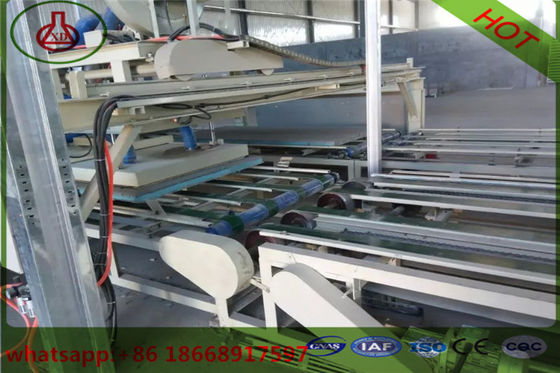

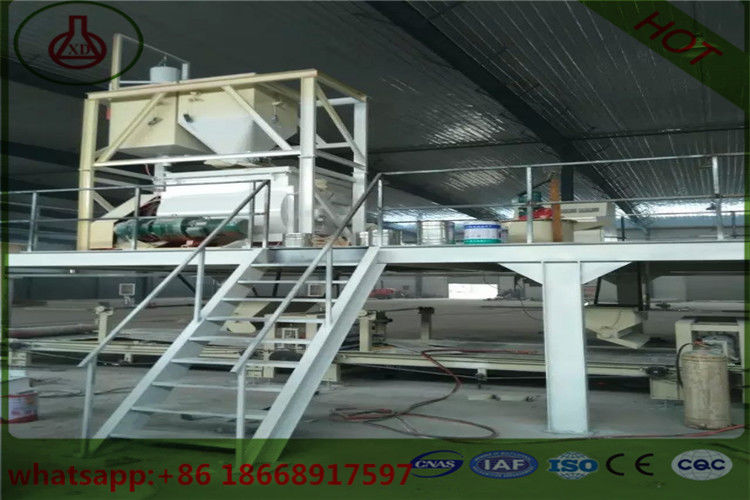

Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery

Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery
Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery
Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery

Gambar besar :  Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery

Detail produk:
Tempat asal: Cina
Nama merek: chuangxin
Sertifikasi: CE
Nomor model: XD-1
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10 Set
Harga: 30000USD
Kemasan rincian: Pengepakan kayu
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 10 set per bulan
Kontak

Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery

Deskripsi
Bahan Baku: mesh serat kaca Kecepatan: sekitar 5m/menit
Lebar panel: Disesuaikan sejarah: Lebih dari 30 tahun
Proses utama: Pembentukan
Menyoroti:

fiber cement board machine

,

sheet forming machine

Best Quality Automatic prefabricated walls fiber cement board production panels making machinery





Process of fiber cement board production line



(1)raw material supply



(2)ingredients,mixing machine



(3)molding equipment,auxiliary equipment



(4)maintenance naturalness for drying



(5)second maintenance area



(6)drying,choosing,cutting,Edge banding machine,packing equipment



Description of fiber cement board production line




Cement fiber board is a new type light-weight and high-strength material. It is made of siliceous materials (main component is SiO2), cement and fiber of certain quantity. It is made in such procedures: Making slurry, shaping, curing &maintaining, drying, etc. The cement fiber board which is different from traditional building material production has higher requirements on techniques and equipments. The high quality cement fiber board production depends on the quality of product's raw material, technology, advanced equipment and management experience.
No
Equipment name
Qty
Unit
1
Water return setting tank
2
Pcs
2
Asbestos wheel rolling machine
1
Set
3
Asbestos defibered machine
1
Set
4
pulp making machine
1
Set
5
600grinding pulp machine
1
Set
6
Hopper slurry convey machine
1
Set
7
Board makingmachine
1
Set
8
Green board beltconveyor
1
Set
9
Three-station stacking machine
1
Set
10
Electrical control device
1
Set
11
Three-station demoulding machine
1
Set
12
Mould oil-brushing macine
1
Set
13
Lifting device
2
Set
14
Return material mixer
1
Set
15
Trolley
25
Set
16
Transmit cart
4
Set
17
Two-station stacking machine
1
Set
18
Slurry making machine
1
Set
19
Platform pressure machine
1
Set
20
Bulk cement measure device
1
Set
21
Cement silo
1
Pc



No. Test Item National standard Wall panel testing
1 Compressive strength ≥3.5MPa ≥3.7MPa
2 Drying shrinkage ≤0.6mm/m² 0.37mm/ m²
3 Hanging force

≥1000N 24hours

No 0.55mm crack in 24hours

≥1000N 24hours

No 0.55mm crack in 24hours
4 shock resistance

without crack shocked

by 30kgs sandbag five times

without crack shocked

by 30kgs sandbag five times
5 The bending failure load

≥1.5 times of the self

weight of the wall panel

≥2.5 times of the self weight

of the wall panel
6 radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3
7 density ≤90kgs/m² ≤43kgs/m²
8 Air insulation of sound ≥35dB ≥43dB
9 Fire resistance limit ≥1 h ≥ 1h



Advantages



1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.



2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and stuck.



3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.



4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.



5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.



6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.



Automatic Prefabricated Walls Fiber Cement Board Production Line Panel Making Machinery 0



Label:

fiber cement board machine,

sheet forming machine,

sheet rolling machine
