Sandwich Wall Panel Fiber Cement Board Production Line , Mgo Board Production Line
Multi-functional Board Production Line
It not only can produce Wall Panel, but also produce Single MgO board.
1. Specification of Board:

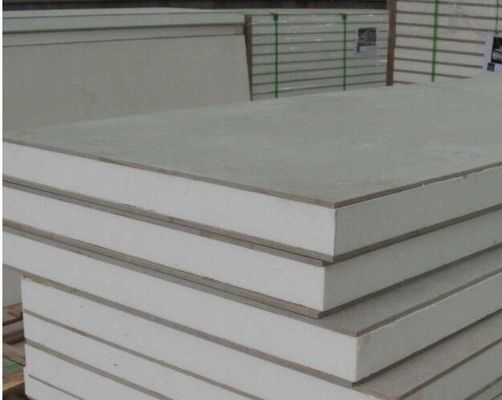

Wall board:
Length: unlimited.
Width: 60cm ---- 120cm (Adjustable)
Thickness: 1cm----15cm (Adjustable)
Mgo Board
Length: unlimited.
Width: Maximum 1.3 m (Adjustable)
Thickness: 2mm-60mm (Adjustable)
Standard Specification of the board is 1.22mX2.44m
2. Machine Model:
According to different production capacity from 800 square meters to 3000 square meters per eight hours wall board-making machine has different models for large-scale, middle-scale and small-scale.
All machine can produce board with same best-quality and specification board, only has different production capacity.
For whole production line, we have common one, semi-automatic one and full-automatic one, you can choose any kind of production line according to your own condition.
3. Application of Wall Board:

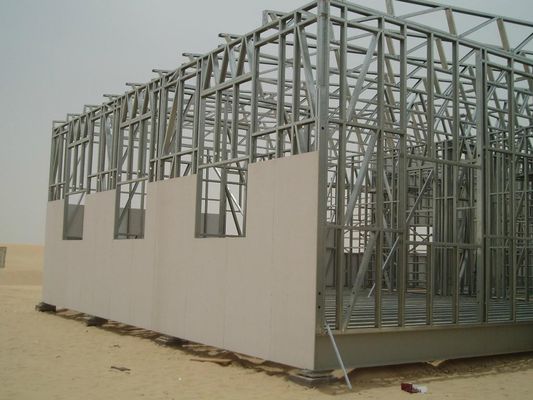

The wall board produced by our machine will replace solid brick as indoor partition, wall of steel structure and frame structure as well as wall of removable houses. Its products can be used for outside wall heat-preserving in northeast area of China.
4. Board performance:
| 1 |
Air-dry density |
≤ (Standard index)50kg/m2 |
(Test Value) 30.0kg/ m2 |
| 2 |
Drying shrinkage rate of the board |
≤0.08% |
0.015% |
| 3 |
Anti-breaking load |
≥1400N |
5640N |
| 4 |
Anti-impact |
No breakage phenomenon such as cracking after three impacts |
No breakage phenomenon such as cracking after three impacts |
| 5 |
Thermal resistance of main section (T=90mm) |
≥1.35(m2.k)/w |
≥1.36(m2.k)/w |
| 6 |
Thermal bridges area ratio |
≤8% |
2.22% |
| 7 |
Sound reduction Index |
|
36dB |
| 8 |
Radioactivity |
|
None |
Technical index:
1. Oxygenic index%: 90
2. Level combustion: SO
3. Vertical combustion: SO
4. Water content rate: 10.9%
5. Capacity: 1.15g/cm3
6. Static bending intensity: 169.46Mpa
7. Density: T/ m3 1.13
8. Water resistance: Without chalking for 24 hours and there is no change on surface
9. No “Three-wastes” (waste water, waste gas and waste residue), no pollution and environmental protection
(I) Cost accounting
Raw material cost: 15 Yuan/ Piece; Wage: 0.5Yuan/ Piece; Water-electricity fee: 0.2 Yuan/ Piece; Depreciation of the workshop: 0.2Yuan/ Piece; Total: 15.90 Yuan/ Piece
(II) Profit analysis: production: (Take the middle-scale equipment as example),400 pieces per day, at the common price of 40 Yuan/ Piece to sell, and then the profit per piece is that: 40 Yuan/ Piece-15.9 Yuan/ Piece=24.1 Yuan/ Piece, the profit per day is that: 400 pieces×24.1 Yuan/ Piece=9640Yuan
