Full automatic Construction Material Making Machinery with 2000 sheets capacity

Gambar besar : Full automatic Construction Material Making Machinery with 2000 sheets capacity

Detail produk:

Tempat asal:	Cina
Nama merek:	chuangxin
Sertifikasi:	CE
Nomor model:	XD-DE

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Dikemas dalam karton pertama, dan kemudian diperkuat dengan kasing kayu untuk pengepakan luar
Waktu pengiriman:	30 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	50 Set per tahun

Kontak

Full automatic Construction Material Making Machinery with 2000 sheets capacity

Deskripsi

Nama Produk:	Mesin papan MgO	Jaminan:	1 Tahun
Nilai Otomatis:	Semi otomatis	Bahan mentah:	Mgo, mgcl, jaring serat kaca
Standar:	CE 3C
Menyoroti:	sandwich panel machinery , wall panel equipment

Main characteristic:

1. Fireproof-Grede A
2. Moisture resistant
3. Excellent impact resistant
4. Excellent sound insulation
5. 100% no asbestos
6. Light weight and easy to work

>Size:
*Thickness: 3mm-25mm
*Standard size: 1200*2400mm; 1220*2440mm
*The Max length is 3660mm and the max width is 1220mm
*other sizes can be cut as per requirements.
*Surface treatment: Slurry, Non-slurry and Laminated with HPL and PVC
*Backside treatment: Texture and sanded
*Edge: Square/Tapered/Beveled/grooved

Application:
>Part ion wall indoor and outdoor
>Ceiling
>Acoustic perforated wall
>Core of fireproof door
Product Description

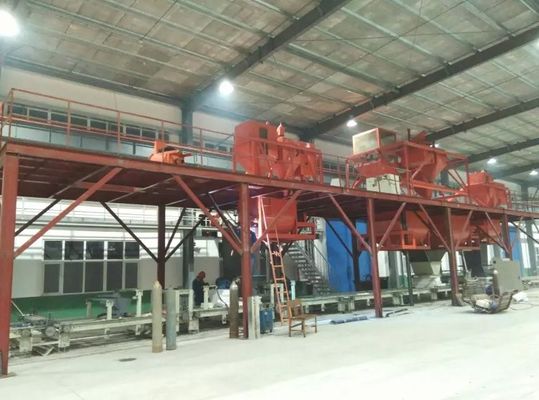

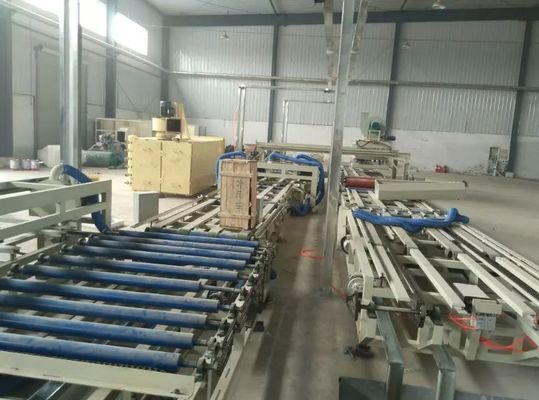

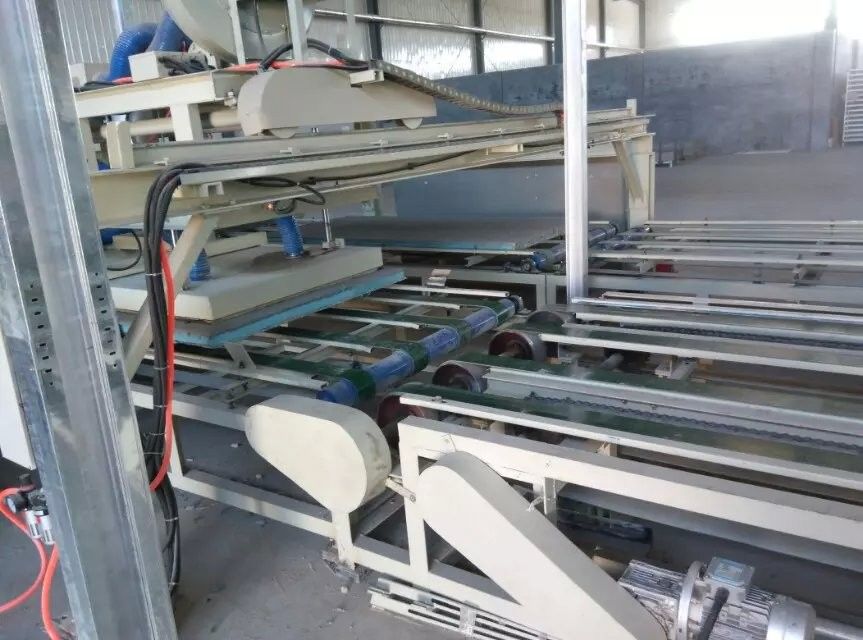

Wall panel production line:
Main System:
Molding machine/mixing system/grouting system/demould machine for wall panel drawing out/turnover system

Overall dimention of the moulding(mm)	3030x2500x1200
Total power	23KW
Power of heating system(KW)	20
Power of hydraulic system(KW)	3
Hydraulic working pressure(Mpa)	8
Maximum Hydraulic working pressure(Mpa)	16
Capacity of hydraulic tank (L)	70
Wall panel size/Qty	50mm	10pieces
	100mm	10pieces
	150mm	7pieces

1. Production line has good design, reasonable structure, stable running and using dual-channel roll-style system. It is shaped in one time and has stable thickness. Also it has higher yield. with a vibration device, it eliminates the inside and outside bubbles. It can produce 2-60mm thickness MOG board. And the widest is 1300mm, for the length, there is no limits, and can adjust the thickness as required.
2. The equipment can have many uses. It can produce the simulation ash board, imitation red/white elm board, Oak panels, fireproof relief door board, ceiling board and wall murals etc.
Full automatic Construction Material Making Machinery with 2000 sheets capacity 0
