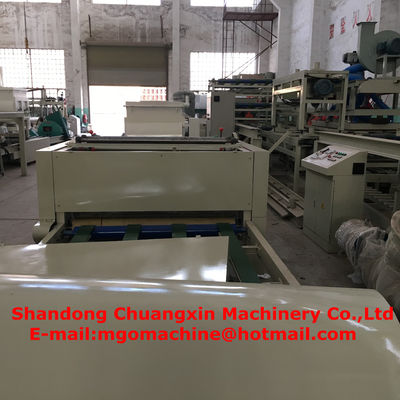

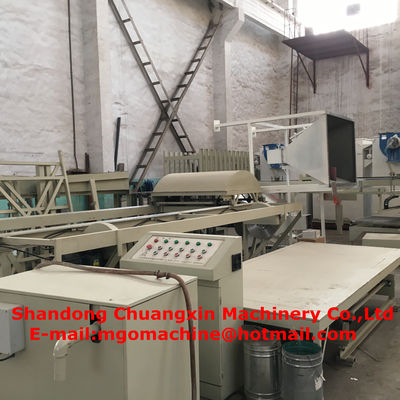

Factory Fireproof Waterproof Mgo Board Production Line WIth Doubl-Shaft Mixing Machine
1. Product features
after province-level detection ,it has such features:fireproof ,water-proof ,sound insulation ,heat preservation,variety and low cost.
Water resistance :Without chalking for 24 hours and there is no change on surface
No “Three-waste” (waste water ,waste gas ,waste residue),no pollution and environmental protection .
| Equipment parameters |
Description |
| Raw material |
Mgo/mgcl2/fiber glass mesh |
| Texture of material |
steel |
| Automatic degree |
Fully/semi automatic |
| Finsihed board size |
Thickness:2-25mm,unlimited length ,width:1300mm |
| Color |
Blue ,red,etc |
| Capacity |
Maximum 1500 sheets/shift(8 hours) |
2. Structure principle and specification
Production line for mgo board with fashionable design ,reasonable structure, stable running manufactures even thickness board in large production once through double ways roll-in technology .This production line is equipped with shaking device which can remove inside and outside air bubble .so our board is more compact .in addition,we use the no-woven cloth as the separating film to increase the toughness and the strength of the board .The machine can be adjusted arbitrarily ,and then produce the board with the thickness of 2-25mm,the biggest width of 1,300mm and unlimited length .so you can adjust the thickness of board at will.
3. The one machine can manufacture several board
Wall decorating mural painting:The board produced by the board-making machine can be made into various decorating art mural painting about landscape, flower-and-bird,insect-and-fish as well as character.the product gets popularity from customers with excellent quality and reasonable price
Vent-pipe :The polystylrene sandwich panle produced by this machine can be made into the vent-pipe used by the central air-conditioning system and all kinds of ventilation facility ,and the product is fireproof ,damp-proof,antiseptic,light-weight,heat-preservation ,long-performance life and low-price.In view of the above features,it wins much favor from users.
Building mould board :The strengthened mould plate with this technology can replace steel mould board ,bamboo&wood mould board and multiayer board .Being a high-profit product ,this board is applied widely in all kinds of concrete engineering with low-cost,high strength,long life and convenient to use .the board is high-profit product
| Serial number |
Inspection items |
Standard requirement
(thickness 8mm)
|
inspection results |
| 1 |
Flexural strength |
>8.0 |
10.3 |
| 2 |
Impact strength |
>1.5 |
4.84 |
| 3 |
performance density |
0.7<p<1.0 |
0.92 |
| 4 |
Back to halogen resistance |
No water, no get damp |
No water, no get damp |
| 5 |
Dry shrinkage |
<0.3 |
0.21 |
| 6 |
Wet bilge rate |
<0.6 |
0.40 |
| 7 |
With screw force |
>15 |
61 |
| 8 |
The chloride ion content |
<10 |
2.96 |
| 9 |
The factory of moisture content |
<8 |
7.5 |
|
10
|
incombustible
|
The average temperature in the furnace |
<50
|
8
|
| The average combustion duration |
<20
|
0
|
| The average mass loss rate |
<50
|
47.5
|
4. Excellect service
Fully life-cycle value services:Our company provides mgo board production line design ,cost accounting,installation and operation,equipment maintenance and the whole life cycle techincal support
all-around thechnical service:We provide technical formula for clients,to help clients to occupy the leading position in the market.
complete data specification:Provide production line equipment technical data and instructions,and provide the mgo board production line formula.
quality commitment:The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting ,wearing parts warranty for one year.
