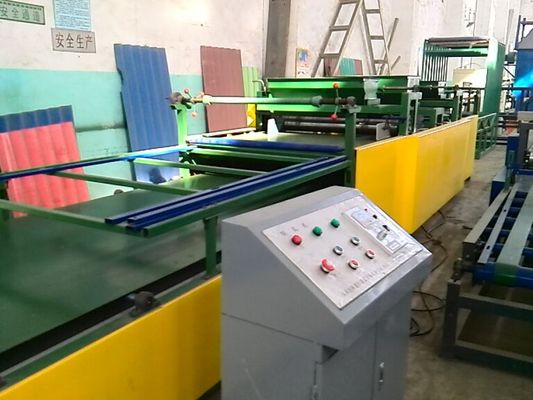

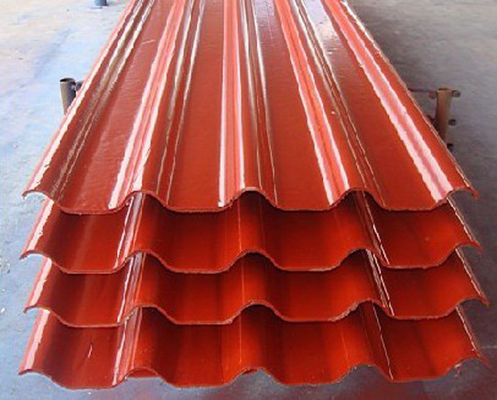

Fire-resistant Corrugated Roof Tile Making Machine Decorative Roof Sheet Forming line
1.The production line is applicable to roof tile making machine , it has features of:
1. Moderate production capacity
2. Low investment
3. Reliable quality
4. Easy to operate
5. Simple to maintain
2.Technology features
There is not any requirement about high temperature and high pressure during production processing .the boarad will be formed at one time after roller-extruding under the conditions of normal temperation and normal pressure .this is a green environmental-protection project, because that there is no waste water ,waste materials and waste gas during its production processing .the finised board don’t need high temperature drying ,air-drying and watering ,and under the normal temperature ,they will dry well indoor
.
3.basic information
| Equipment parameters |
Description |
| Raw material |
Mgo/mgcl2/fiber glass mesh |
| Texture of material |
steel |
| Automatic degree |
Fully/semi automatic |
| Finished board size |
Thickness:2-25mm,unlimited length ,width:1300mm |
| Color |
Blue ,red,etc |
| Capacity |
Maximum 1500 sheets/shift(8 hours) |
4.Production conditions
The production line for mgo board is composed of board-making machine,
glue-spreading and veneering-drying machine and glazing machine.according
to the production and the automatic degree, this production line is divided
into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,
finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW
(according to different scale)
| frequency |
pressure |
equipment |
rooms |
capacity |
| 50HZ |
380V |
1.7million M2 |
12M*80M/9M*40M |
10KW-15KW |
5.Technology index
| Oxygenic index % |
>90 |
| Level combustion |
SO |
| Vertical combustion |
SO |
| Water content rate |
10.9% |
| Capacity |
1.15g/cm3 |
| Static bending intentsity |
169.46Mpa |
| Density |
T/m3 1.13 |
Water resistance :Without chalking for 24 hours and there is no change on
surfaceNo “Three-waste” (waste water ,waste gas ,waste residue),no
pollution and environmental protection .
6. Excellect service
1)Fully life-cycle value services
Our company provides mgo board production line design ,cost accounting,installation and operation,equipment maintenance and the whole
life cycle techincal support
2)all-around thechnical service
We provide technical formula for clients,to help clients to occupy the leading position in the market.
3)complete data specification
Provide production line equipment technical data and instructions,and provide
the mgo board production line formula.
4)quality commitment
The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting ,wearing parts warranty for one year.
